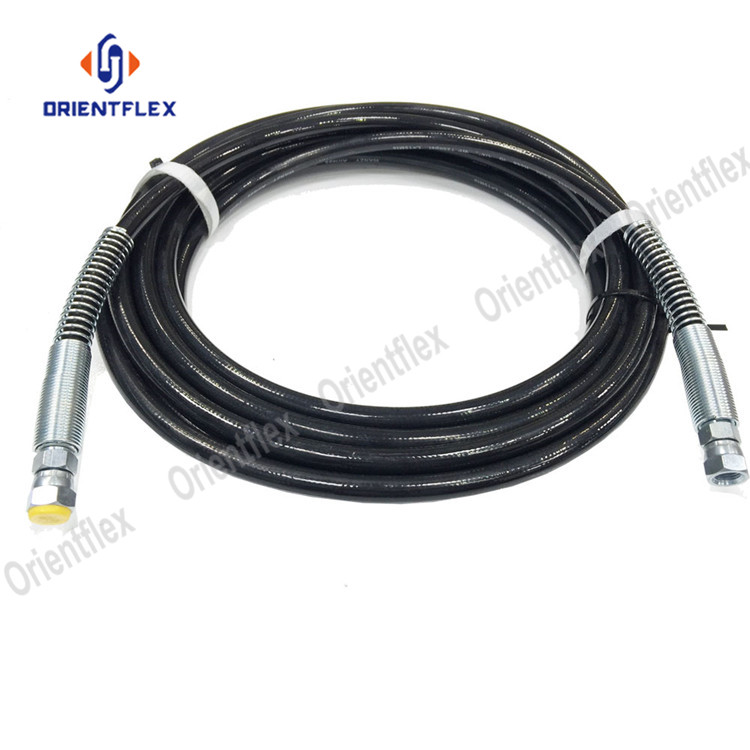

1/4 airless spraying machine hose 227bar

1/4 airless spraying machine hose 227bar

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1000 Meter
    Delivery Time: 30 Days
    Packaging: We Could Design Package According To Customer's Desire
    Productivity: 300000 M/Month
    Brand: Orientflex
    Transportation: Ocean,Land,Air,Express delivery
    Place of Origin: Hebei
    Supply Ability: 300000 M/Month
    Certificate: ISO
    Port: TianJin,Qingdao,NingBo

Basic Info

Model No.: PSH

Material: Nitrile Rubber

Capability: Rubber Hose for Sand and Grit Blasting

Color: Color, Black,red,dark Blue Etc.

Size: 1/4"-3/8"

Temperature: -40℉ To +250℉ (-40℃ To +121℃)

W.P.: 22.7~50 MPa

B.P.: 68.1~150 MPa

Tube: White,oil Resistant, Thermoplastic Layer

Reinforcement: Two Layer Synthetic Fiber

Feature: High Pressure, Aging Resistant.

Application: High-pressure Hydraulic Lines.

Cover: Colorful, Oil, Abrasion And Weather Resistant, Thermoplastic Cover.

Product Description

1/4 airless Spraying Machine hose 227bar



PRODUCT DESCRIPTION
Application

1/4 airless spraying machine hose 227bar.high pressure airless spray systems,chemical resistance solvents and aggressive fluids

Temperature range

-40℃ (-40 °F) - 100℃ (+212 °F)max.temperature recommended for water base hydraulic fluids and air : +70℃ (+ 158°F)
Tube
Internal core in polyamide
Reinforcement
1 or 2 high tensile aramidic braid or steel wire braid
Cover
pin pricked polurethane high abrasion resistance.

Safety factor

3:1

Specifications

Item code Inter Diameter Outer Diameter Working pressure Min Burst Pressure Min Bend Radius Weight
mm inch mm inch MPa psi MPa psi mm Kg/m
SPSH6.4-1 6.3 1/4 12.5 0.49 22.7 3292 68.1 9874.5 30 0.13
SPSH6.4-2 6.3 1/4 14.0 0.55 40 5800 120 17400 55 0.21
SPSH6.4-2 6.3 1/4 15.5 0.61 50 7250 150 21750 70 0.25
SPFH8-1 8.0 5/16 13.5 0.53 22.7 3292 68.1 9874.5 75 0.21
SPSH8-2 8.0 5/16 15.0 0.59 40 5800 120 17400 90 0.35
SPSH8-3 8.0 5/16 16.5 0.65 50 7250 150 21750 105 0.39
SPSH10.0-1 10.0 3/8 16.0 0.62 22.7 3292 68.1 9874.5 80 0.31
SPSH10.0-2 10.0 3/8 19.1 0.75 40 5800 120 17400 127 0.34
SPSH10.0-3 10.0 3/8 21.5 0.85 50 7250 150 21750 135 0.4



OVERALL SHOWING
Paint Spray Hose 5Paint Spray Hose 3Paint Spray Hose 12
C
COMPANY INFORMATION


Company Information

ORIENTFLEX

Factory History: Established in 2006
Business Type: Manufacturer and exporter
Main Products: Small machinery such as hydraulic hose crimping machine, industrial hose, hydraulic hose, PVC hose and hose coupling.








P
PACKING & SHIPPING
Shipping

Fast Delivery

INTERNATIONAL AIR MAIL

Payment

Shipping

Different amount of time will be required for different




F
FAQ

Can you produce the hose with my own brand ?

Yes, we have been offering OEM service for 10 years.

Can you send us a sample to test quality before ordering ?

Yes, we can provide sample by free but the freight and other charges is payed by the customers.

Could we pay a visit to your factory ?

Yes, you are always welcome to visit our factory.

Can you help us do the custom clearance ?

Yes, we can. We can help you find a professional custom clearance company to do it.

Can we get the goods without your company name to export ?

Yes, we can. We are allowed to use your designated agent's name if you have one.

Can you produce goods with special specification ?

First of all, we need to know the specification in details, and then we need to check with our technology department.

C
CONTACT WAYS

CONTACT US

Orientflex Contact

  • 1
  • 2
  • 3
  • 4
  • 5
 Factory History: Established in 2010 Business Type: Professional manufacturer and exporter Main Products: Industrial hose, hydraulic hose, PVC hose, Small Machinery such as hydraulic hose crimping machine and Hose coupling. Technical team: 120 experienced workers, 10 experienced engineers. Sales Team: 12 sales and service employees, 8 years experiences in foreign trade. Facilities: 20 automatic high speed braiding machines, 4 steel wire spiral machines, 2 Italy VP equipment for industrial hose, 30 production lines for pvc hose Quality control: strict material inspection before production, Strict control during production 100% inspection before shipment Market: more than 85 countries, 1266 clients all over world Certificate: ISO 9001, ISO 14001
